Professional PCB design with over 10 years of experience in electronics. Specialized in complex projects: high-speed, impedance control, thermal dissipation, and high-density layouts. Fedevel Academy Certified • Altium Designer • KiCad.

Portfolio

Weareable

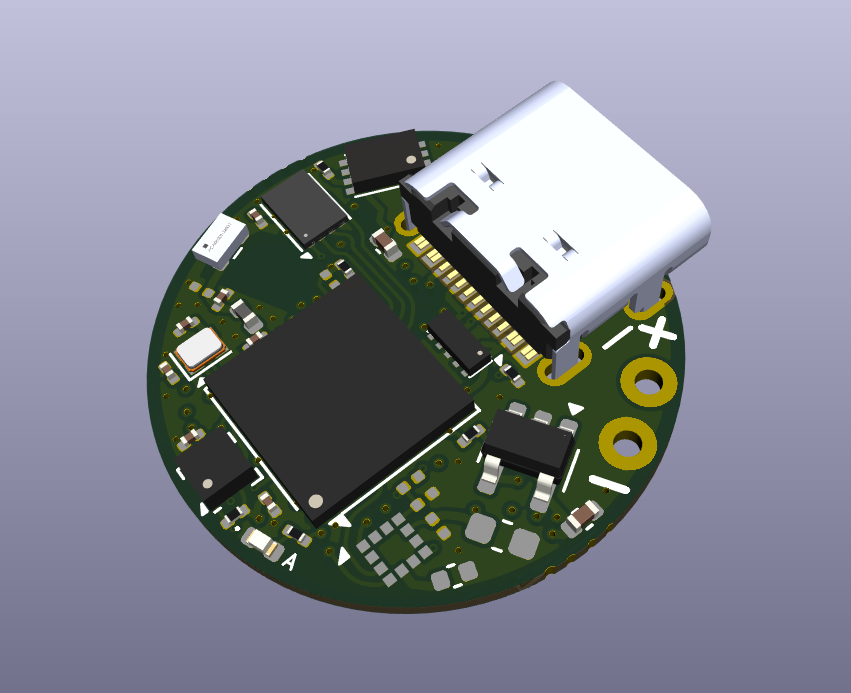

  • 4 layers PCB with impedance controlled traces and blind vias.
  • USB-C.
  • Magnetometer 3-axis.
  • Accelerometer high G 3-axis.
  • Accelerometer low G 3-axis.
  • Gyroscope 3-axis.
  • Flash memory Quad-SPI.
  • Low power.
  • Bluetooth with chip antenna.
  • Li-Ion battery charger

Low cost high density 2 layer PCB for agricultural devices

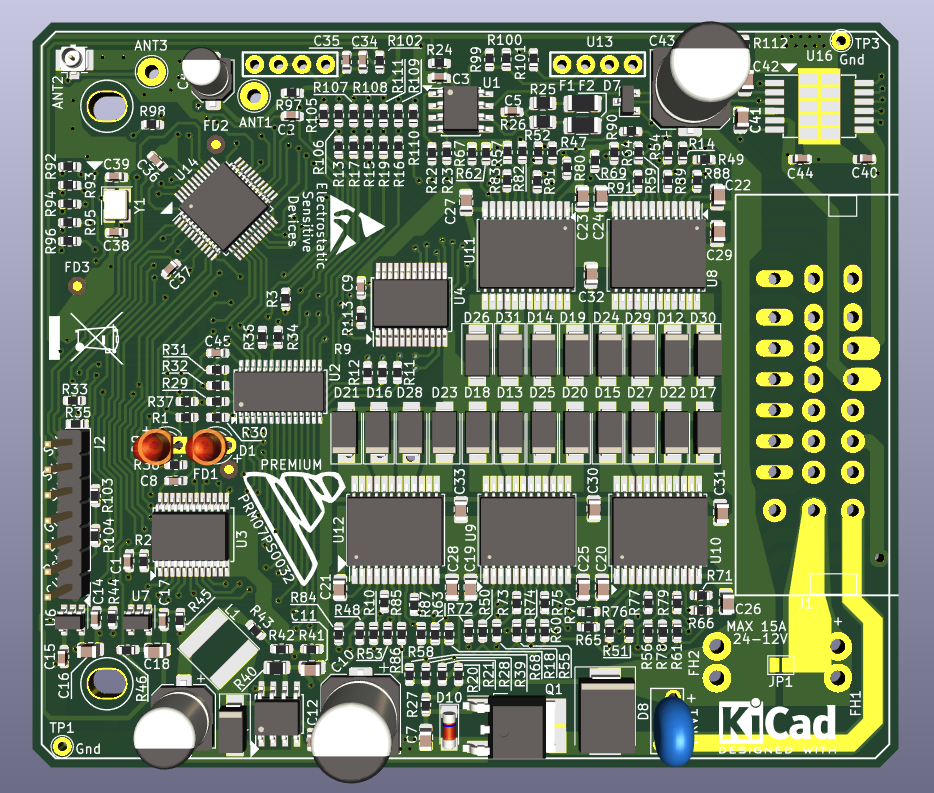

  • Low cost 2 layer PCB for ECU.
  • 20 input (0 – 36V).
  • 20 output with current measure.
  • CAN, RS485 and more.
  • No high speed bus needed.
  • Limited space, complex positioning and routing restrictions.

Robust Motherboard for agricultural navigation systems

  • 8 Layers PCB with controlled impedance and many high speed interfaces.
  • USB2.0, USB3.0, USB PD, M.2, PCIe, MDIO, Ethernet, RMII, CAN…
  • GNSS antenna.
  • Mechanical restrictions.
